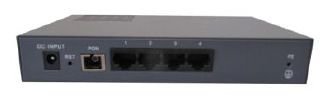

ONU, 1 PON interface (SC/UPC), 4x 10/100/1000Mbps RJ45
Kód: P1504
Žádné hodnocení.
Porty
1x SC/UPC PON
4x RJ45 10/100/1000Mbps
Operační vlnové délky
1310nm(TX)/1490nm(RX)
Maximální vzdálenost OLT
20 km
Citlivost -26dBm
Hlavní vlastnosti:
1. Supports the symmetric uplink/downlink 1Gbps PON transmission rate, efficient bandwidth usage and Ethernet services, helping carriers to provide reliable services to their users.
2. Supports to establish a hybrid networking together with OLTs of mainstream manufacturers, minimizing the cost for the carrier to establish its network.
3. Supports SLA and DBA.
4. Occupies little space and consumes a little volume of power.
Podporované funkce:
1. These EPON products adopt the point-to-multipoint network topology, effectively collect separate Ethernet services and aggregate them. They provide the standard fast-Ethernet interface (RJ45) on the user side and can be connected to the existing network smoothly.
2. Their dynamic bandwidth distribution mechanism enables all users to share the 1Gbps bandwidth reasonably, realizes reliable QoS and guarantees different services in a same network different qualities.
3. They support the IGMP multicast and efficiently utilize the bandwidth.
4. They support port isolation.
5. They support the Ethernet loop detection, automatically judge whether the device-connecting network has Ethernet loopback interrupted, and resume the loop when the loop disappears.
6. They support the multicast VLAN.
7. It supports remote loopback and remote diagnosis of the network state.
8. It has rich OAM function designs, including the configuration, alarm, performance monitoring, fault separation and security management. It not only provides the remote OLT management mode but also supports local console platform management.
Rádi vás budeme informovat o snížení ceny pod vámi zadanou částku.
ONU, 1 PON interface (SC/UPC), 4x 10/100/1000Mbps RJ45
Hmotnost: 0.5 kg
